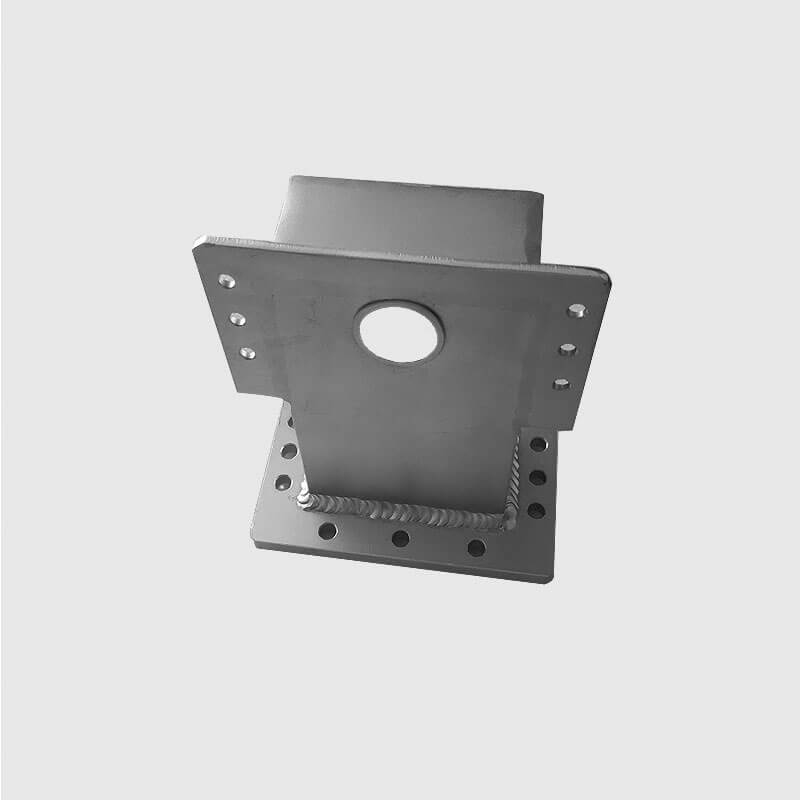

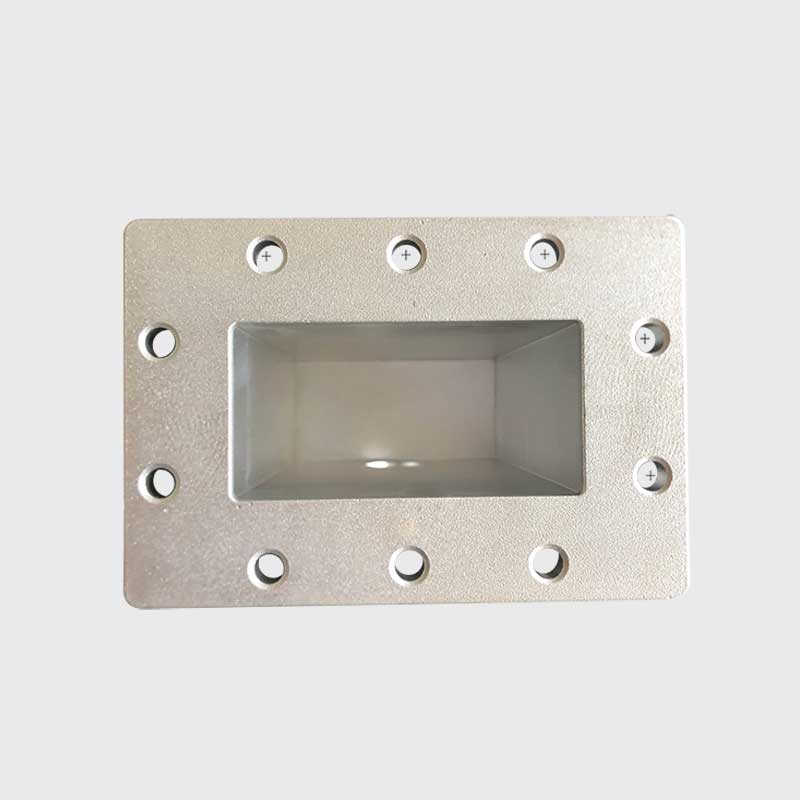

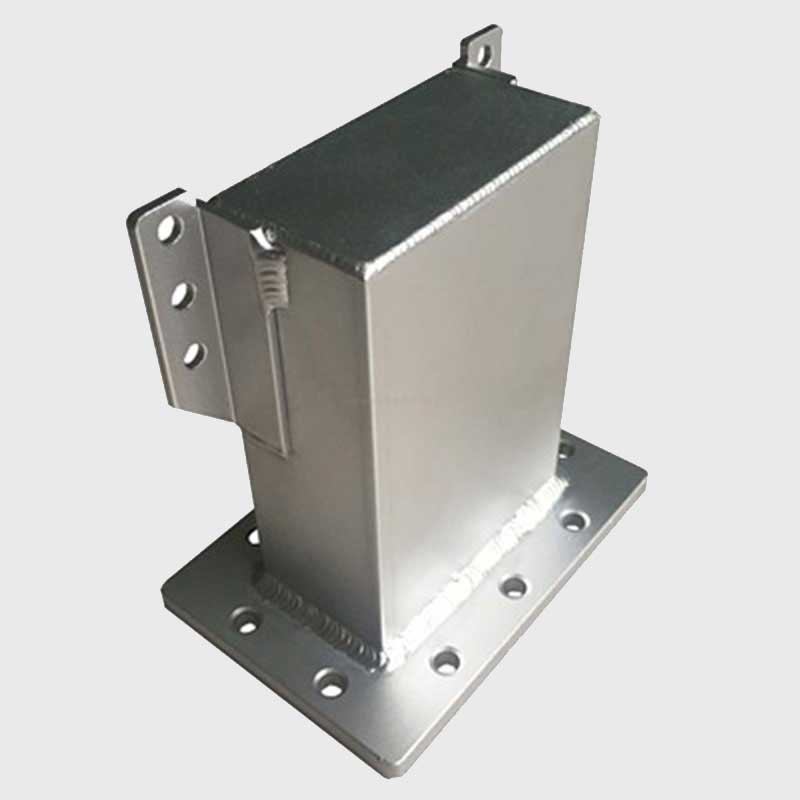

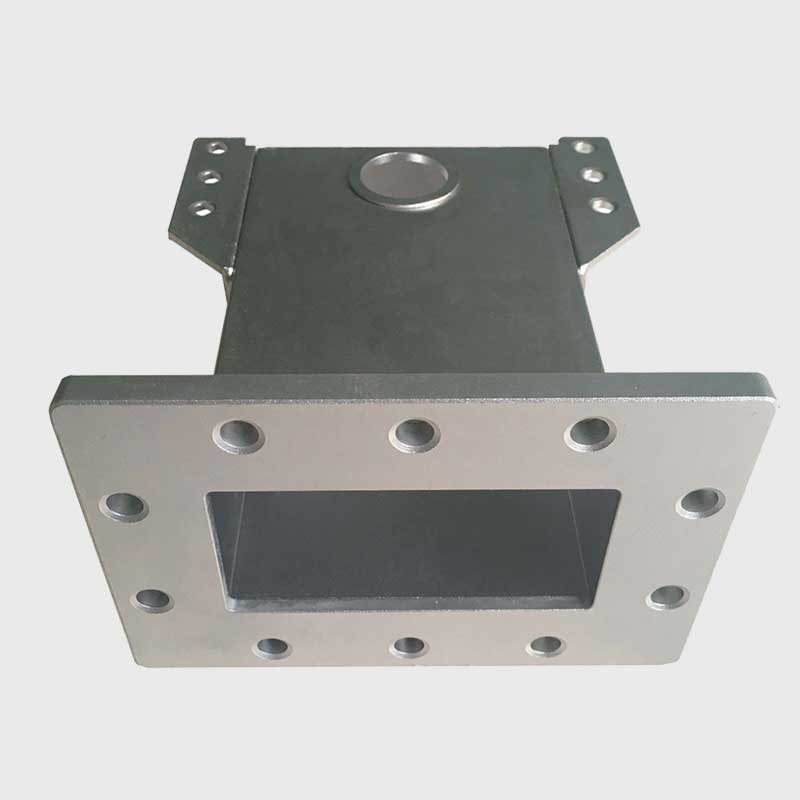

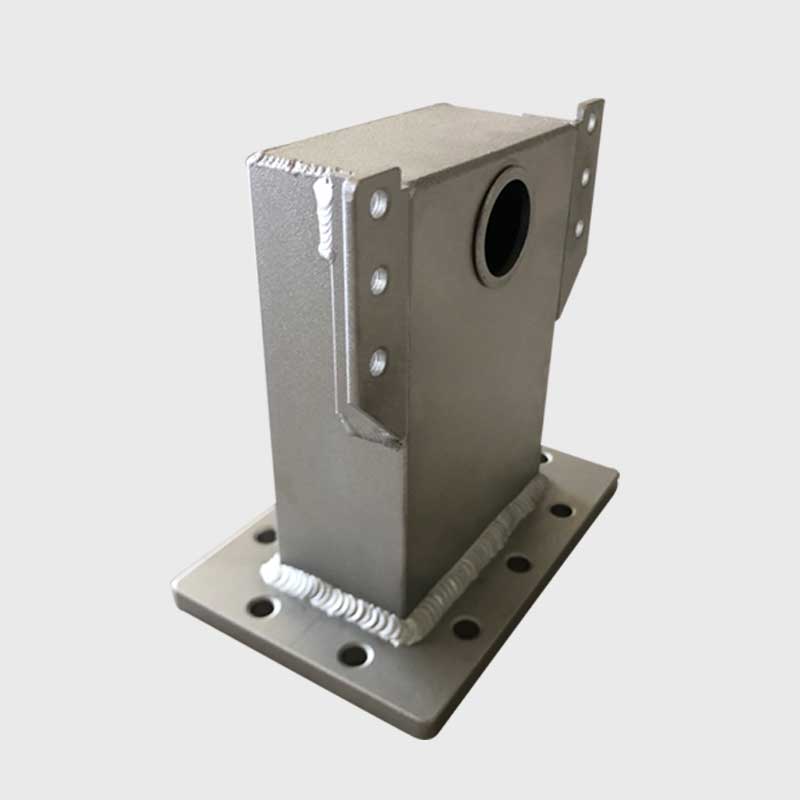

Rectangular microwave waveguide BJ-26NS

Product name:Rectangular microwave waveguide BJ-26NS
Thickness:8mm
Output power:1000W to 1500W
Type:Rectangular
Size:138x95x155mm

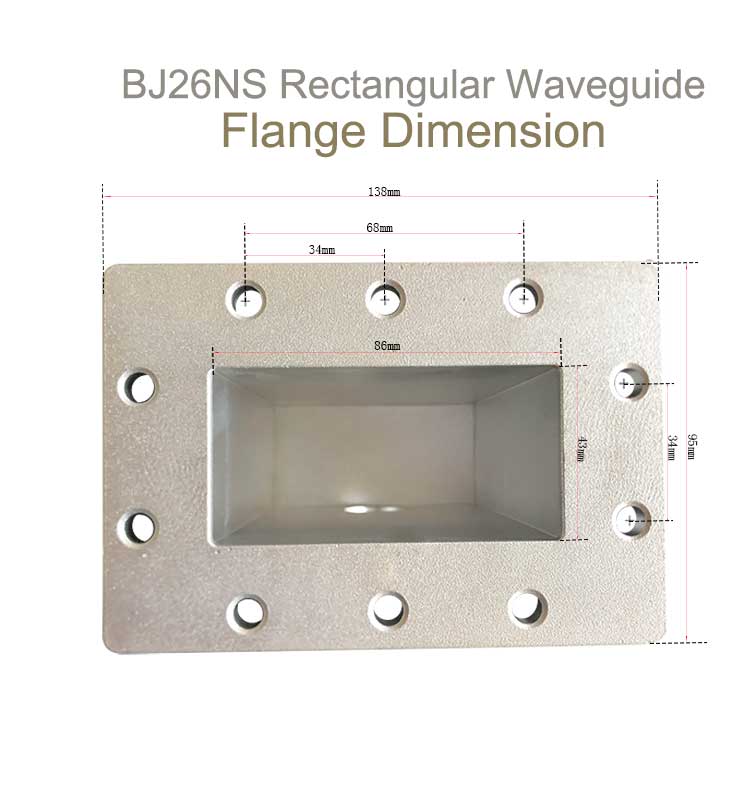

Size of floor board:138x95mm
Material:Copper or alumimun
Technique:Welded
Color:Golden or silver
Weight:0.6Kgs

We're here to help: Easy ways to get the answers you need.

Description of Rectangular microwave waveguide BJ-26NS:

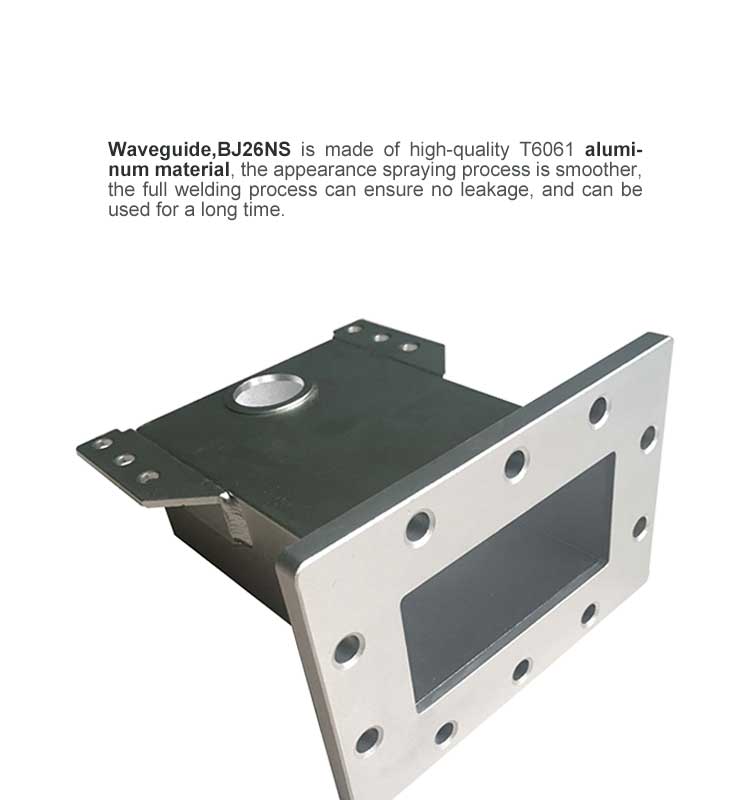

Rectangular microwave waveguide BJ-26NS is special desgined for industrial microwave drying and sterilization machine. It adopts T6061 aluminum materials, and stretch forming, anodized processing appearance. Its rated frequency is from 2.17 to 3.3GHZ, and can match with 1000w to 1500w microwave magnetrons.

Features of Rectangular microwave waveguide BJ-26NS:

Rectangular microwave waveguide BJ-26NS

1. Rectangular waveguide can't transmit TEM wave, only transmit TE or TM wave.
2. In general(a>b) the main modes of rectangular waveguide is TE10.
3. The cutoff wavelength of rectangular waveguide is 2a.
4. Tranmission condition of single-molde waveguide is wavelength is larger than (a and2b) and less than 2a.
5. Rectangular waveguide has large capacity and less attenuation.
