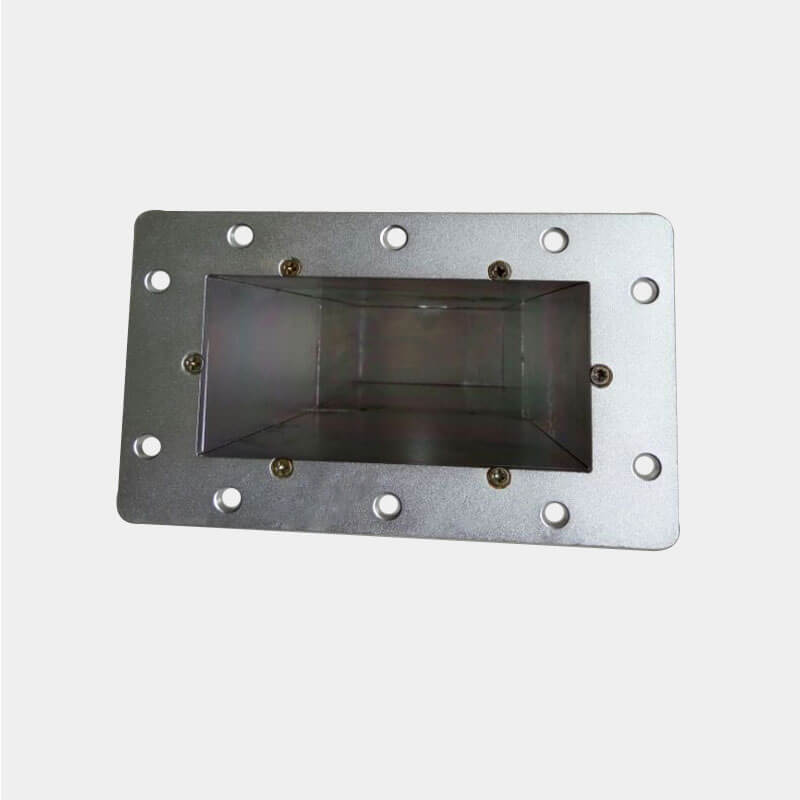

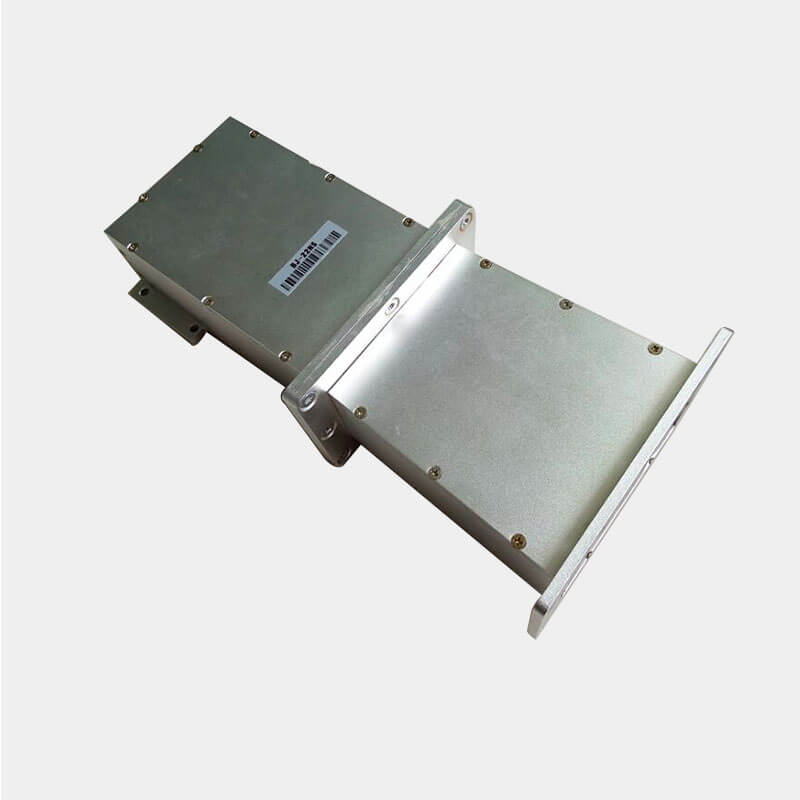

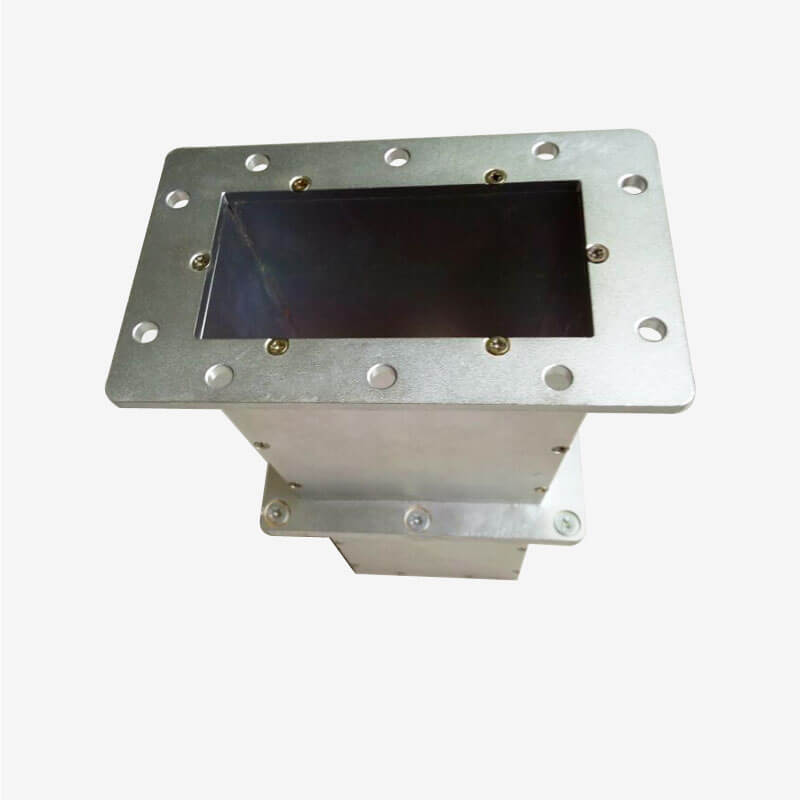

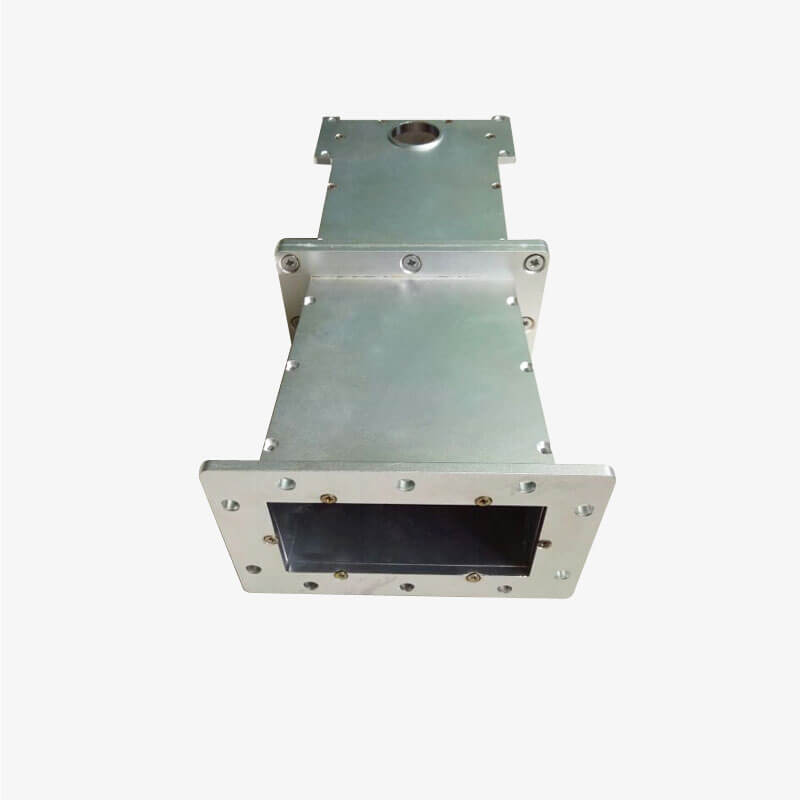

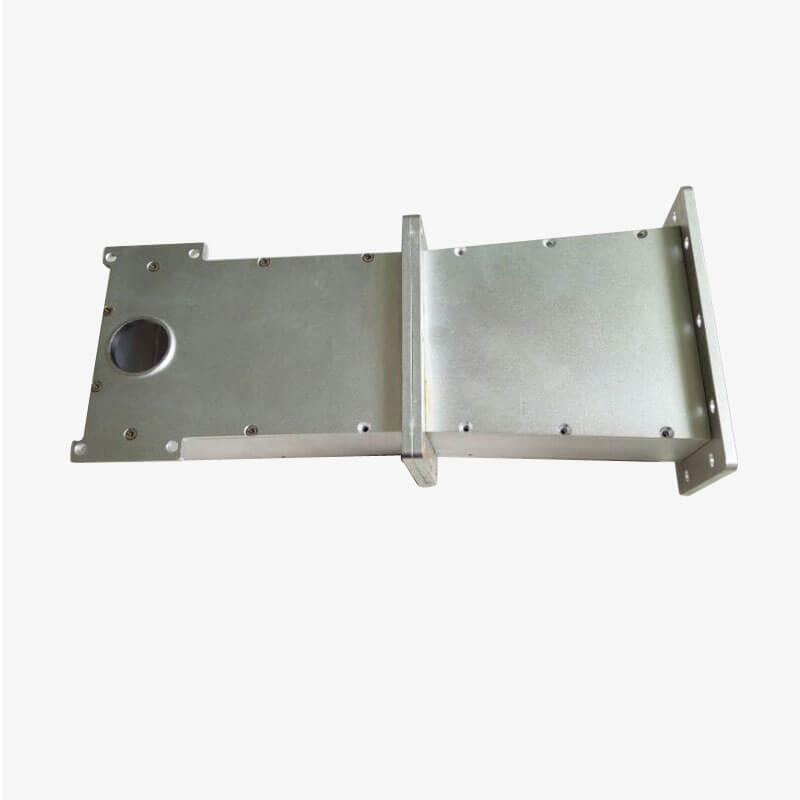

Rectangular Waveguide BJ-22NS for 2KW and 3KW Magnetrons

Name:Rectangular Waveguide BJ-22NS for 2KW and 3KW Magnetrons
Materials:Aluminum
Floor board size:160x95mm
Flange size:113x110mm
Entrance size:110x55mm
The fixed hole of magnetron head diameter:23mm

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Description of Rectangular Waveguide BJ-22NS for 2KW and 3KW Magnetrons:

Rectangular Waveguide BJ-22NS for 2KW and 3KW Magnetrons is special desgined for industrial microwave drying and sterilization machine. It adopts T6061 aluminum materials, and stretch forming, anodized processing appearance. Its rated frequency is from 2.17 to 3.3GHZ, and can match with 2000w to 3000w microwave magnetrons.

Features of Rectangular Waveguide BJ-22NS for 2KW and 3KW Magnetrons:

Rectangular Waveguide BJ-22NS for 2KW and 3KW Magnetrons

1. Rectangular waveguide can't transmit TEM wave, only transmit TE or TM wave.
2. In general(a>b) the main modes of rectangular waveguide is TE10.
3. The cutoff wavelength of rectangular waveguide is 2a.
4. Tranmission condition of single-molde waveguide is wavelength is larger than (a and2b) and less than 2a.
5. Rectangular waveguide has large capacity and less attenuation.
