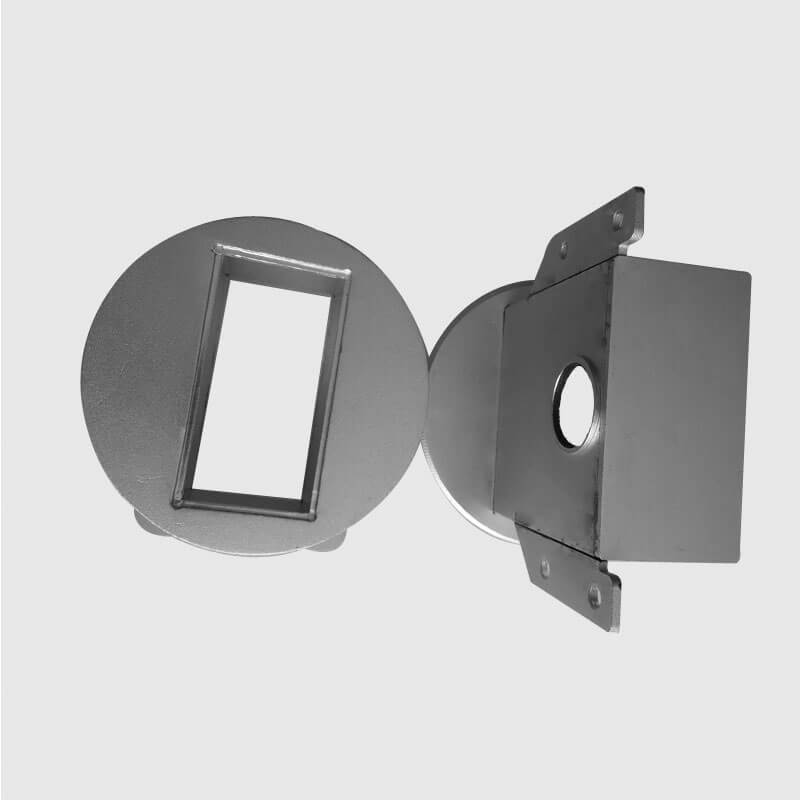

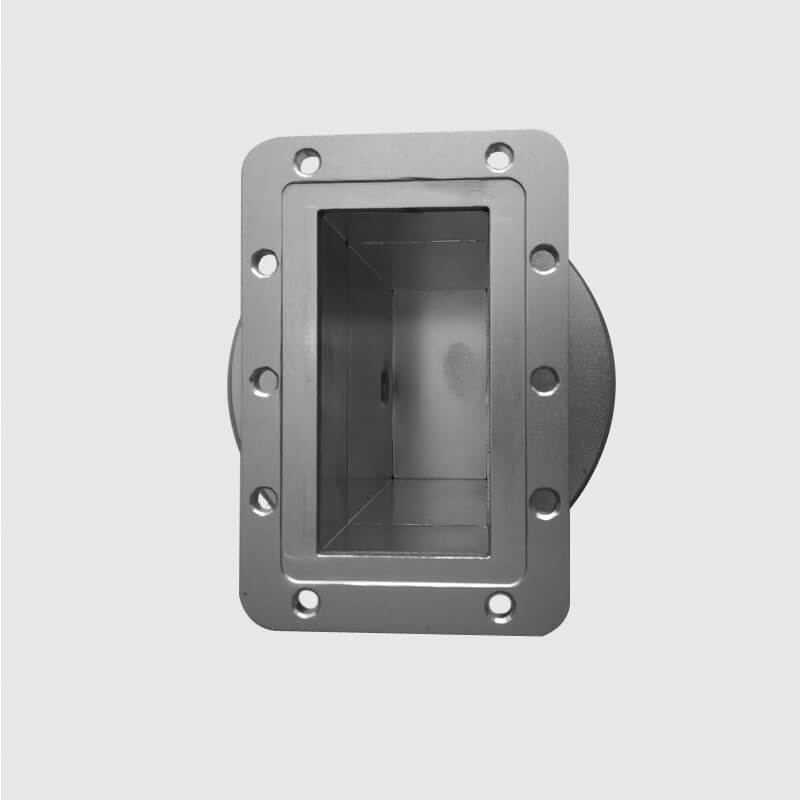

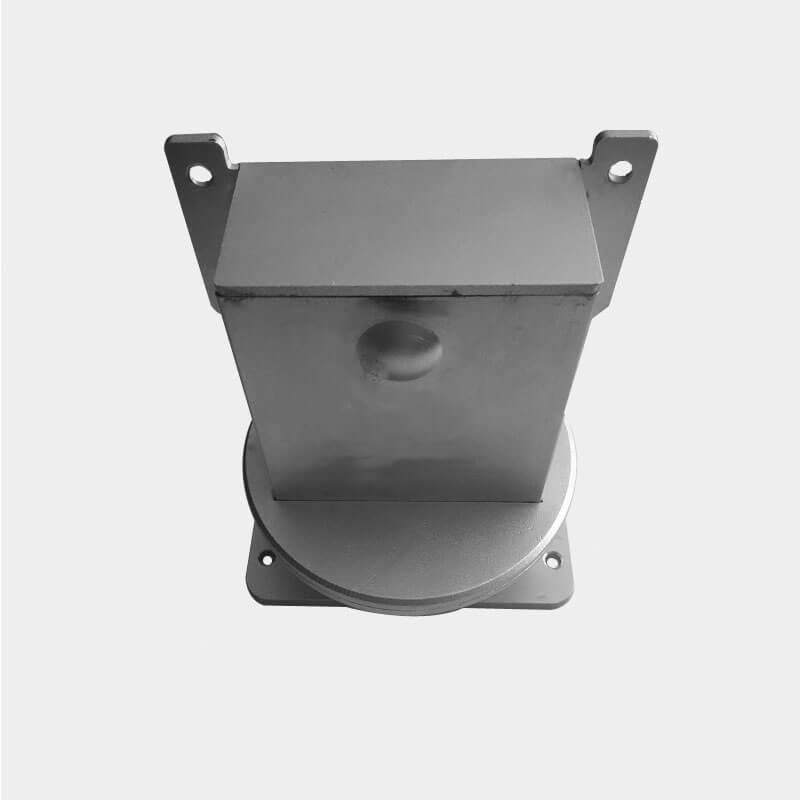

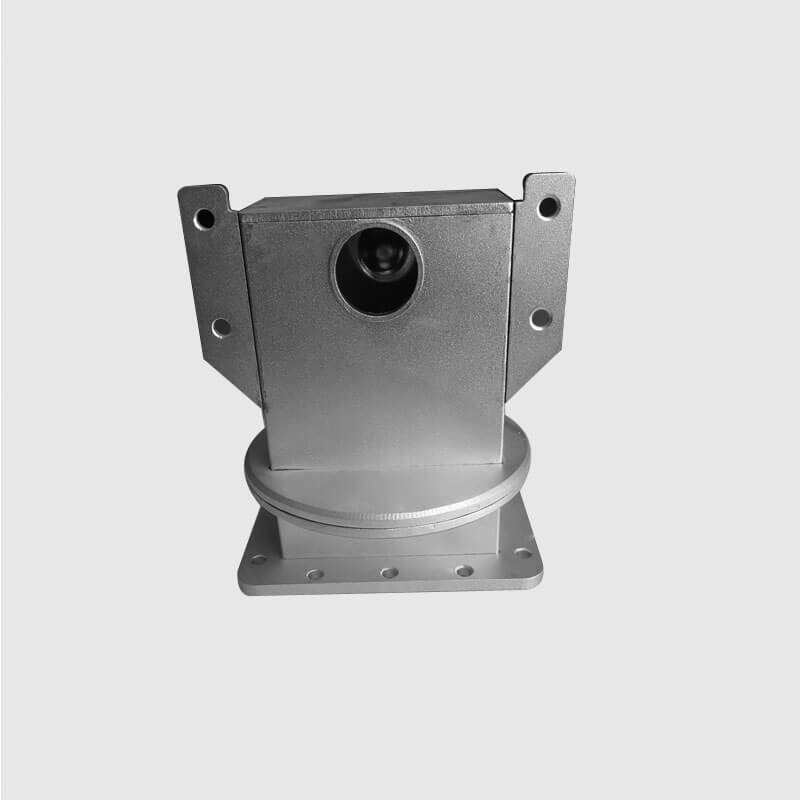

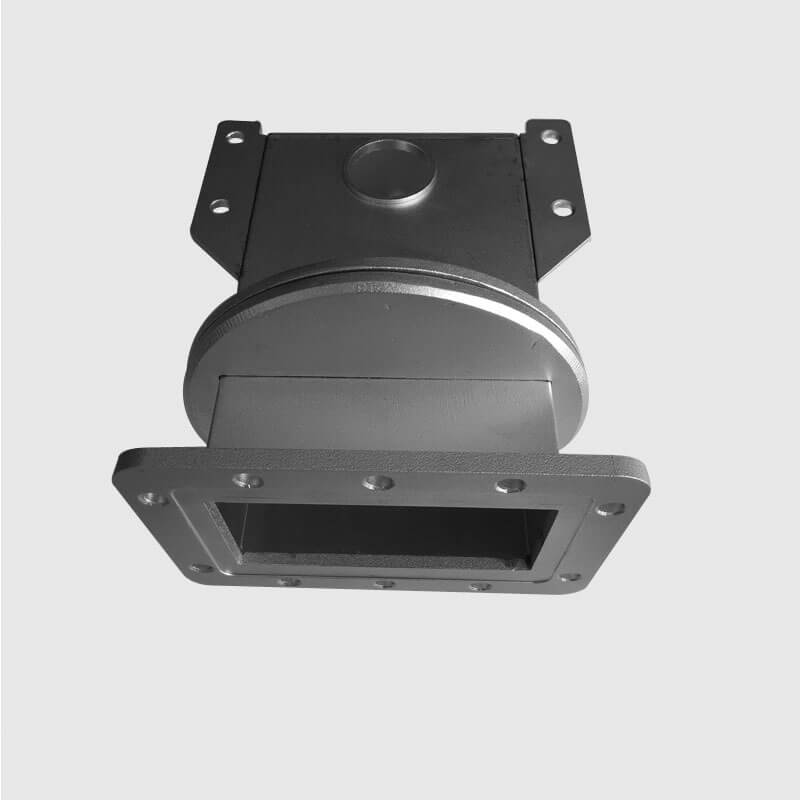

Split type rectangular microwave waveguide BJ26

Name:Split type rectangular microwave waveguide BJ26
Material:Aluminum
Model:Split type BJ26
Customize:Yes
Frequency:2450MHZ
Thickness:8mm
Power:1000w/1500w
Weight:0.5kgs

We're here to help: Easy ways to get the answers you need.

Description of Split type rectangular microwave waveguide BJ26:

Split type rectangular microwave waveguide BJ26 is special desgined for industrial microwave drying and sterilization machine. It adopts T6061 aluminum materials, and stretch forming, anodized processing appearance. Its rated frequency is from 2.17 to 3.3GHZ, and can match with 1000w to 1500w microwave magnetrons.

Features of Split type rectangular microwave waveguide BJ26:

Split type rectangular microwave waveguide BJ26

1. Rectangular waveguide can't transmit TEM wave, only transmit TE or TM wave.
2. In general(a>b) the main modes of rectangular waveguide is TE10.
3. The cutoff wavelength of rectangular waveguide is 2a.
4. Tranmission condition of single-molde waveguide is wavelength is larger than (a and2b) and less than 2a.
5. Rectangular waveguide has large capacity and less attenuation.
