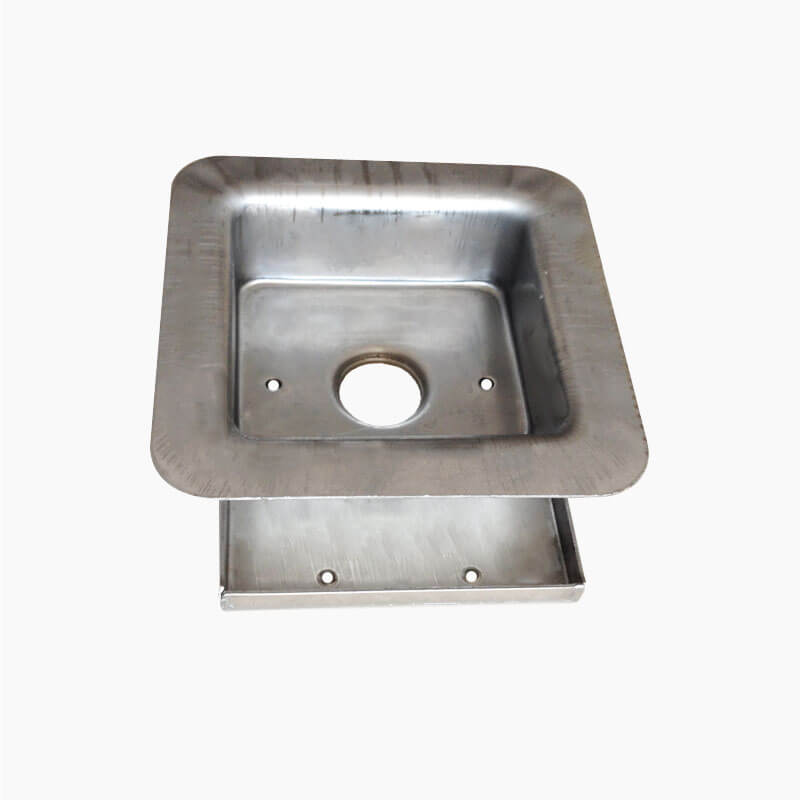

Stainless Steel Waveguide BJ2611NS for 1000W magnetron

Name:Stainless Steel Waveguide BJ2611NS for 1000W magnetron
Material:SUS304
Floor board size:130x80mm
Flange size:113x110mm
Entrance size:80x80mm
Inner diameter:55x80mm
The fixed hole of magnetron head diameter:23mm
Weight:0.5kgs

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Description of Stainless Steel Waveguide BJ2611NS for 1000W magnetron:

Stainless Steel Waveguide BJ2611NS for 1000W magnetron

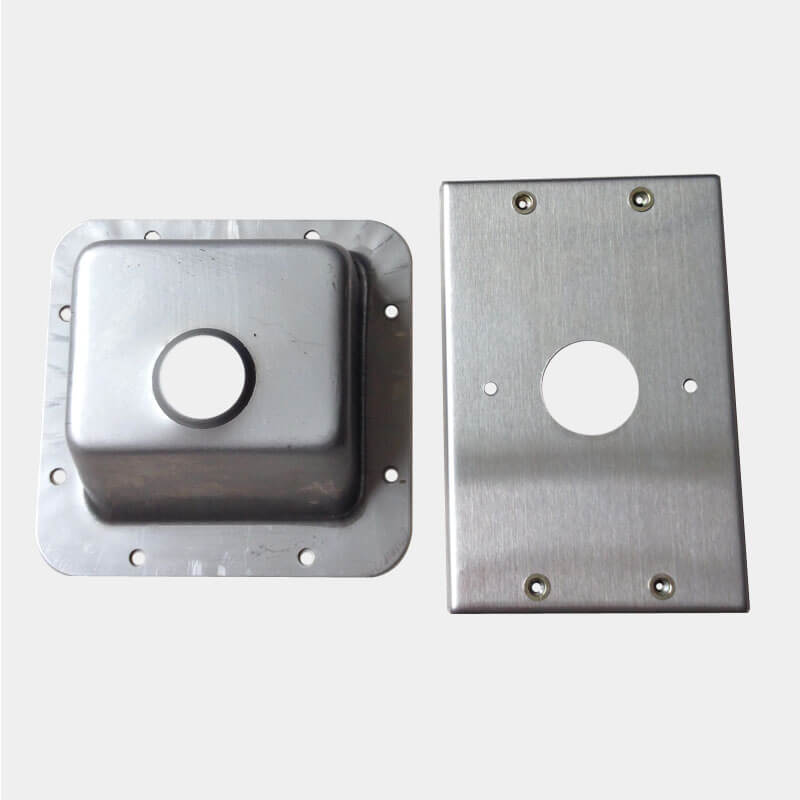

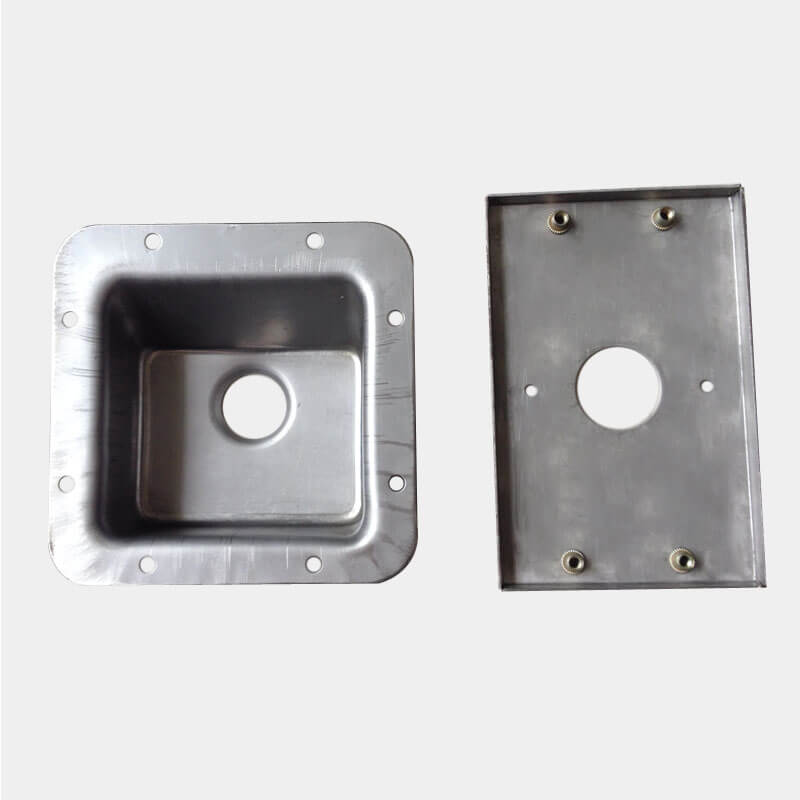

There are three models of stainless steel waveguide: A, B and C.
Mode A: has no screw fixed hole on the flange side; and it should be weld into the microwave oven.
Model B: has screw fixed hole on the flange side, and two alignment points are on the top of the waveguide. It can be fixed into the holes in the cavity of microwave oven.

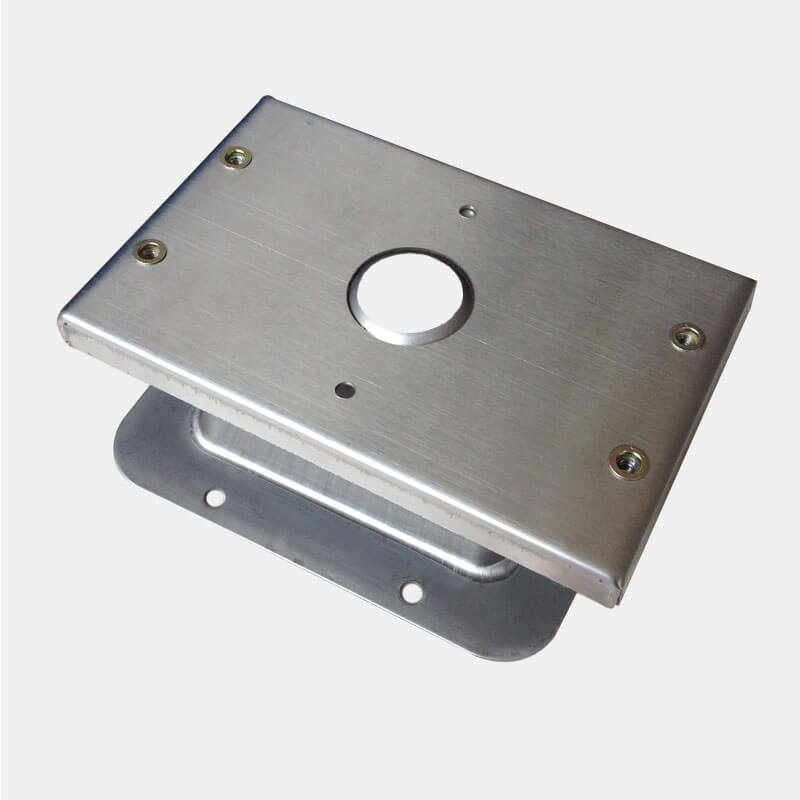

Model C: has screw fixed holes on the flange side, and the top of waveguide is neat. There are 4 fixed holes in the fixed board. It's more convenient to fixed with magnetrons.

Application of Stainless Steel Waveguide BJ2611NS for 1000W magnetron:

Stainless Steel Waveguide BJ2611NS for 1000W magnetron

Industrial microwave equipment special waveguide, scientific matching design, through the welding installation in the cavity, hole using mica sheet
(mica sheet may help keep to avoide humidity, dust, dust and impurities, the role of a certain degree to prevent microwave leak), magnetic control
Tube through the stainless steel waveguide microwave import cavity in the body for drying, sterilization and other materials, ensure that the microwave
Incentives for feed into the cavity, reduce microwave circumfluence.
