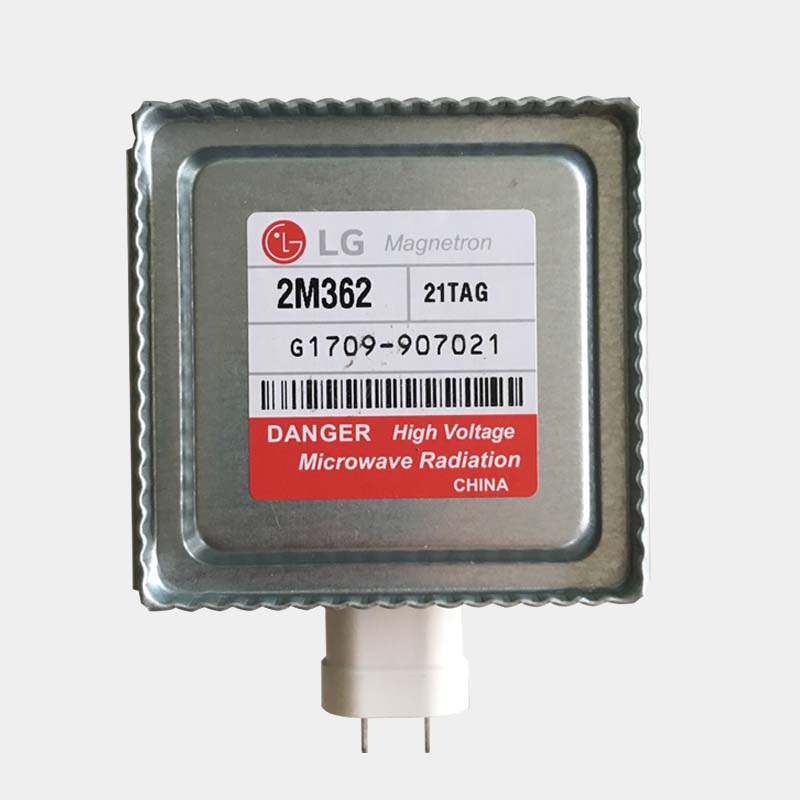

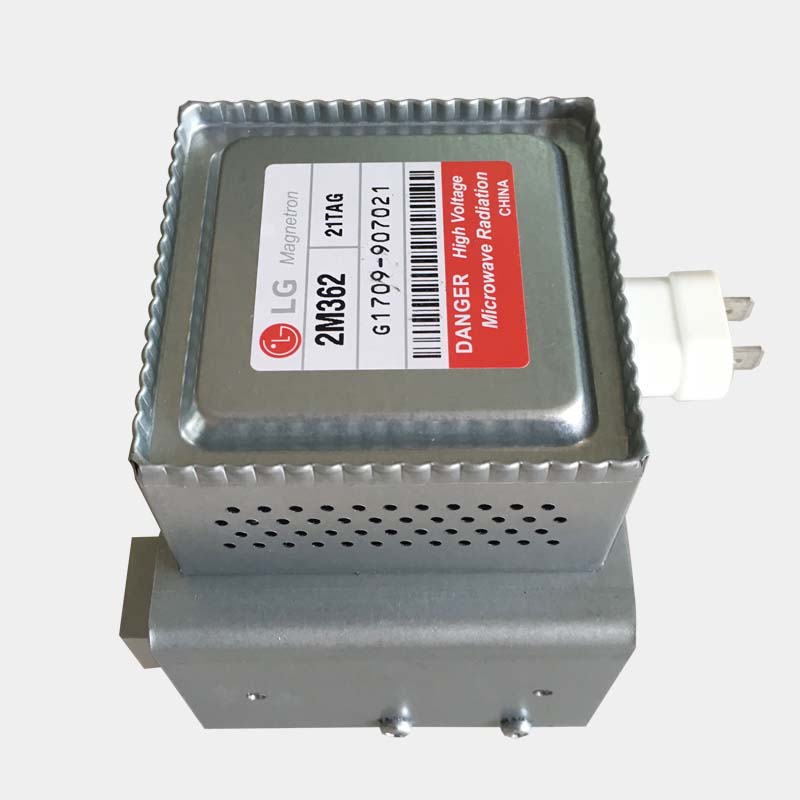

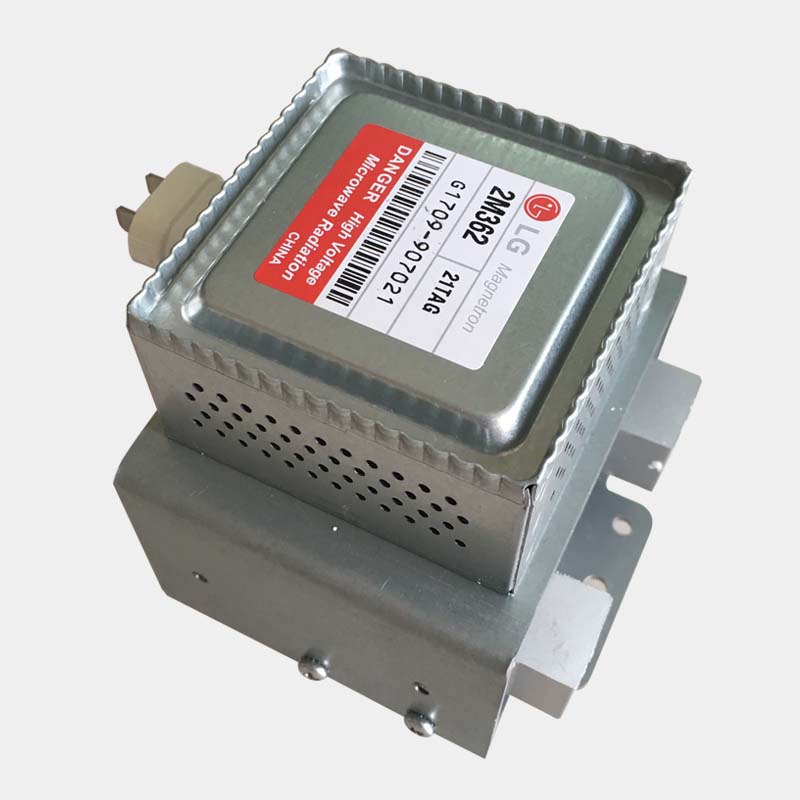

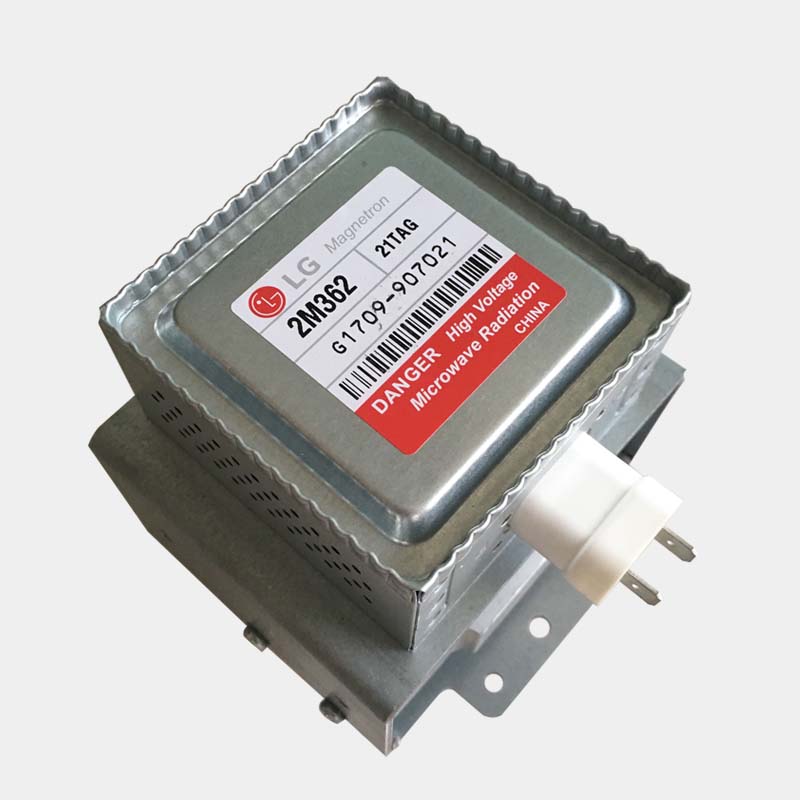

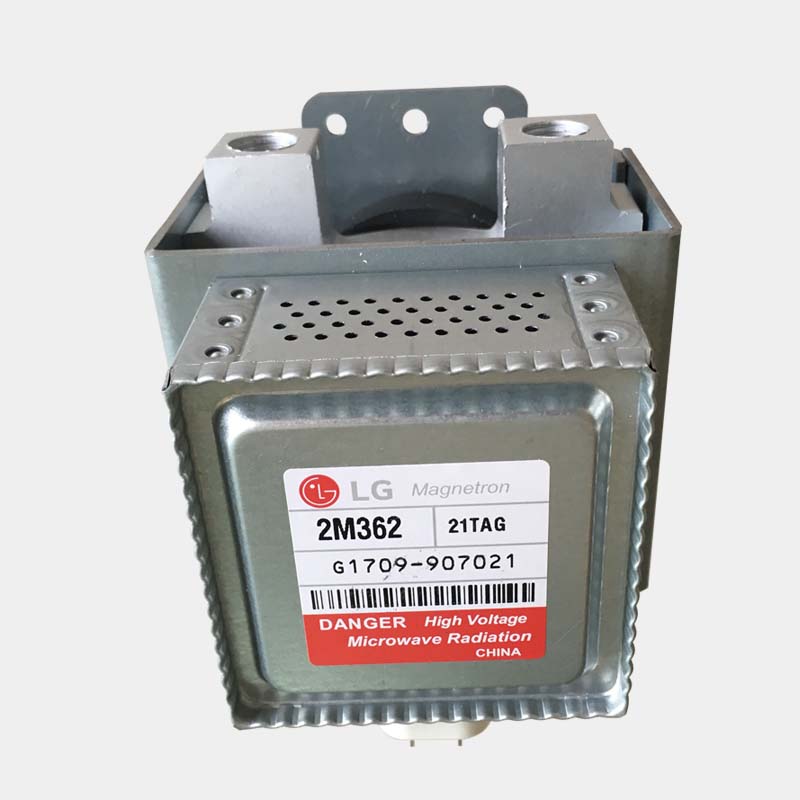

1500W LG Water Cooled Magnetron,2M362

  • Microwave Rated Power:1500W
  • Microwave Frequency:2450MHz
  • Filament Voltage:3.15V
  • Filament Current:10.5A
  • Anode Voltage:4.4KV
  • Anode Current:430mA
  • Cooling Way:water cooled
  • Fixed Size:95mm*35mm
  • Dimension:109mm*93.2mm*128mm
  • Weight:1.0kg

We're here to help: Easy ways to get the answers you need.

Send Email Chat Now

Main Parameters:

  1. Pre-heating Time:5 SEC
  2. Output Power:1500W
  3. Filament Voltage:3.15V
  4. Filament Current:10.5A
  5. Anode Voltage:4.4KV
  6. Anode Current:430MA
  7. Cooling method:Water-cooled
  8. Output method:WG(Waveguide output)
  9. Matching power supply:Single-phase filterless full-wave rectifier

Application::

  1. The total power of microwave equipment used in these industries is relatively large. Use of 1500W magnetron can reduce the installation space of microwave equipment and adapt the equipment to more production sites.
  2. Food and daily necessities industry.
  3. Small commercial microwave ovens and large box microwave ovens with high power but low cabinet size
  4. Institute laboratory microwave research test.
  5. Microwave high-temperature industries, such as magnetic materials, ceramics, metal compounds need to use microwave high-temperature furnace to achieve rapid heating temperature of 500-1500 degrees for sintering, synthesis work.

Advantages:

At present, box-type/tunnel-type microwave devices are installed using multiple magnetrons, and the magnetron power used is mostly 1000W.When the equipment is designed, the magnetron part takes up a lot of space, the layout is cumbersome, the line repetition failure rate is high, and the maintenance cost is high.

With 1500W magnetrons, more microwave sources can be placed in a limited space, the design efficiency is increased by 30%-50%, and the consumption of corresponding microwave components for magnetrons is reduced accordingly.
