3x1000W Oil Immersed Magnetron Power Supply
1,New Size and Weight
300*220*200mm, 8.8KG, Oil quantity( needed): 12.0L
Adopts 12mm pneumatic pipe, water cooling circulating

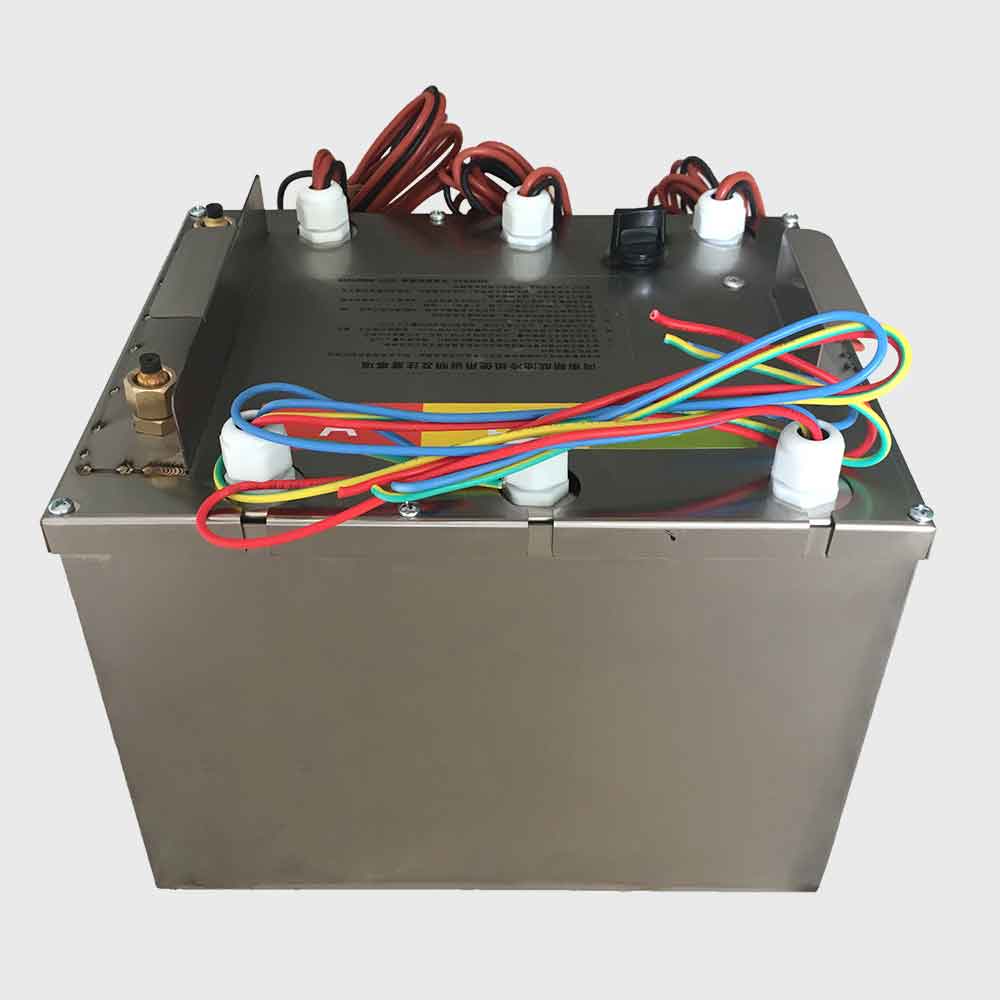

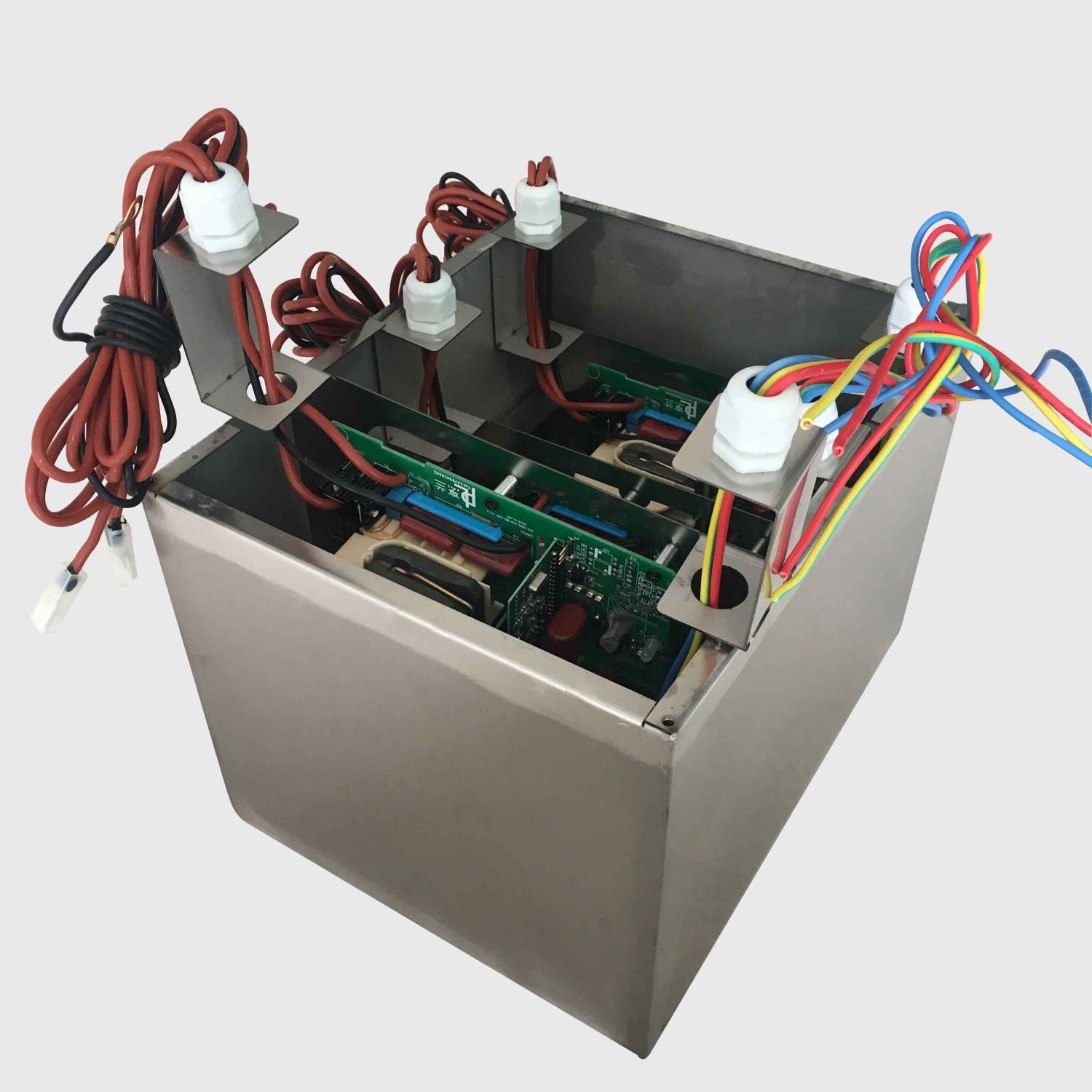

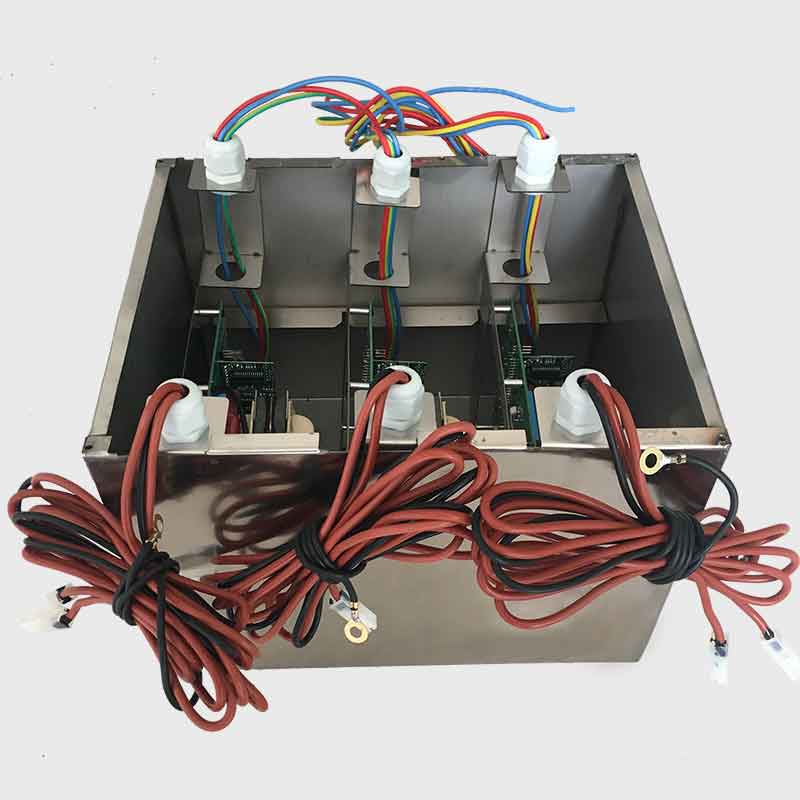

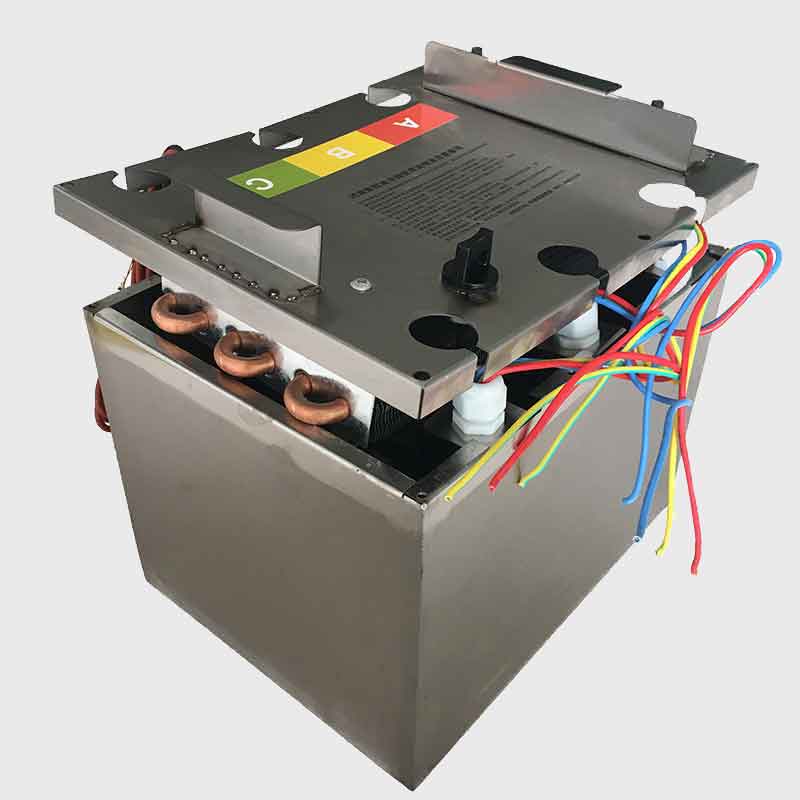

2, Save time of maintenance and replacement
Each pair of power panel can be taken out seperately.
3, How to measure the oil level
The oil filler was closer to the cooling fins, which is easier to judge the oil level.

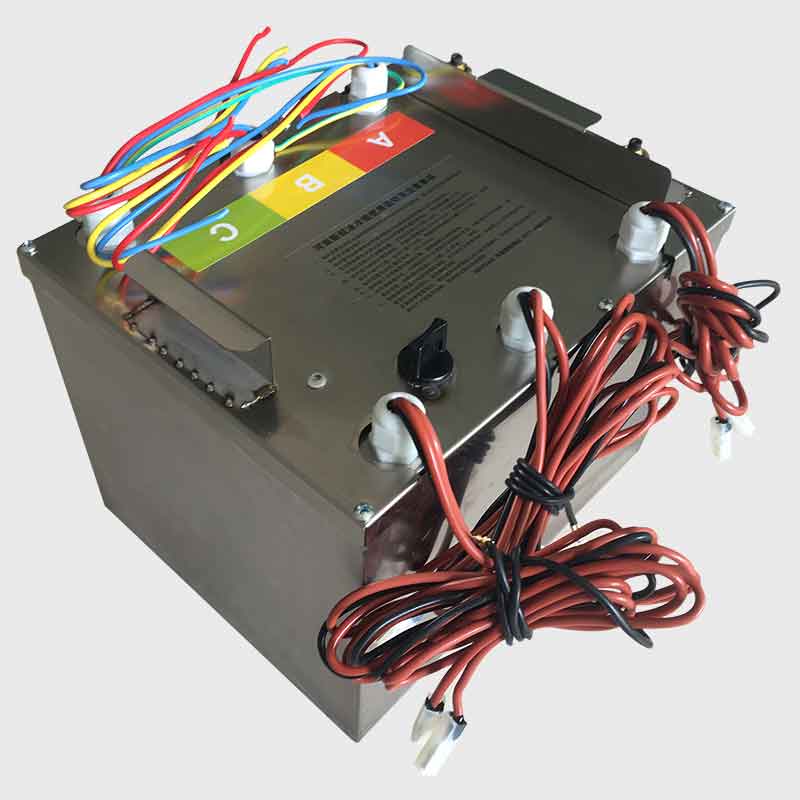

4, Wiring
Left side: Two red wires- Filament wire
One black wire- Ground wire
Right side: Red line- Fire line
Yellow line- Ground line
Blue line- Zero line
