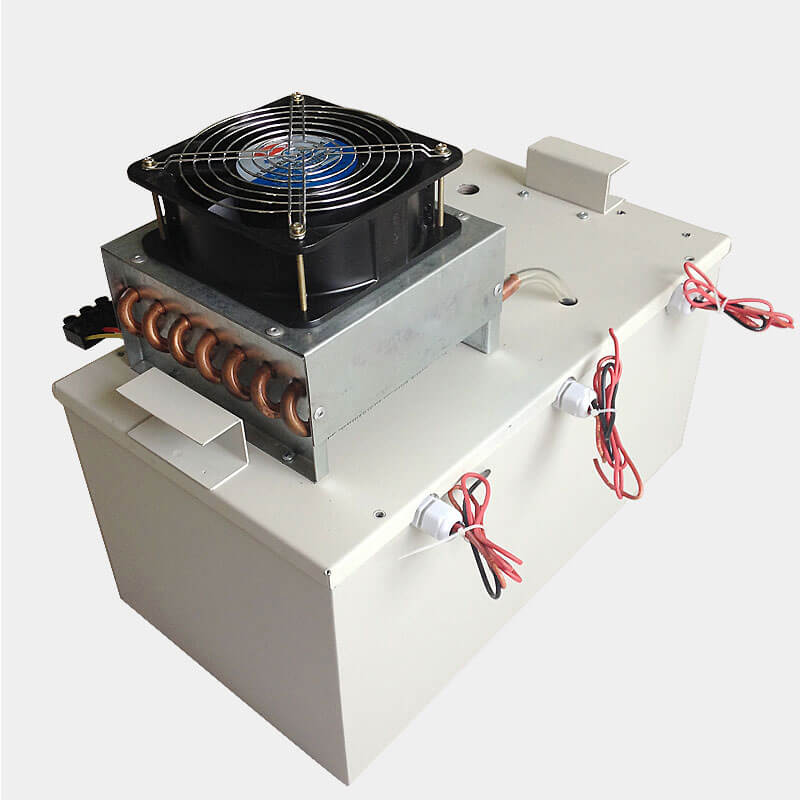

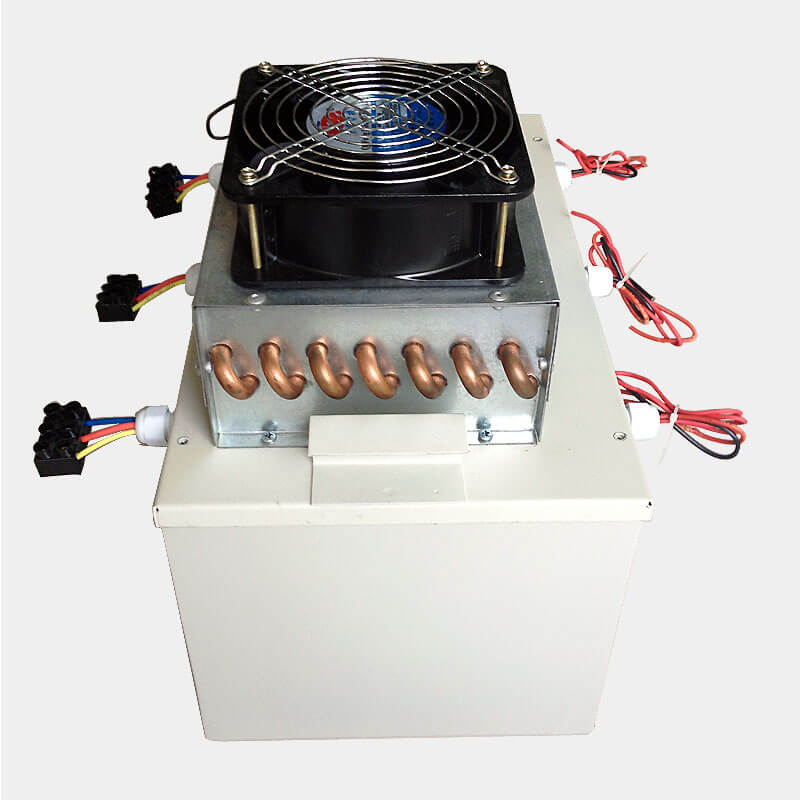

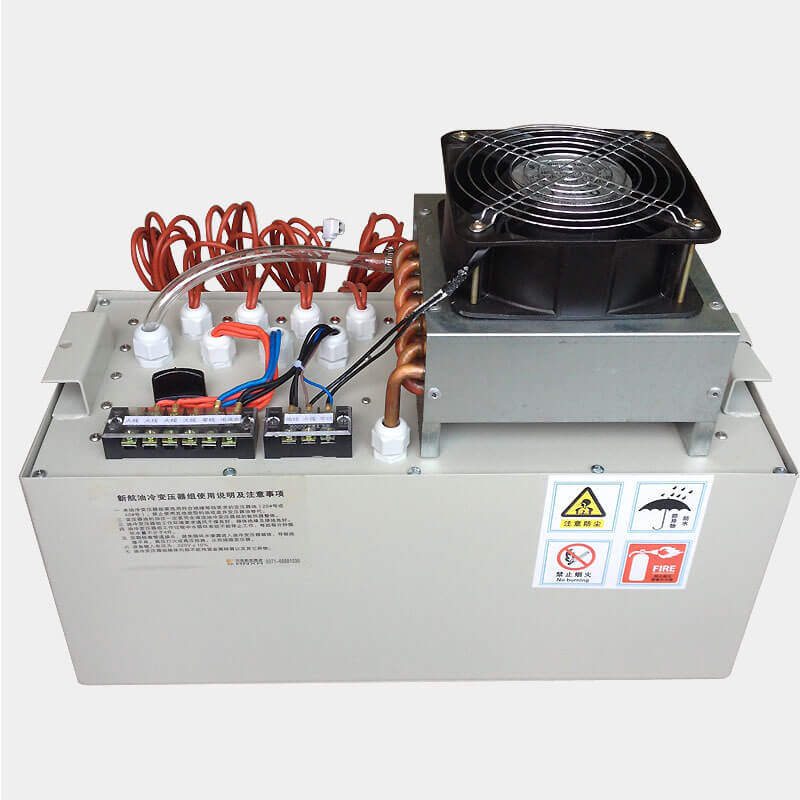

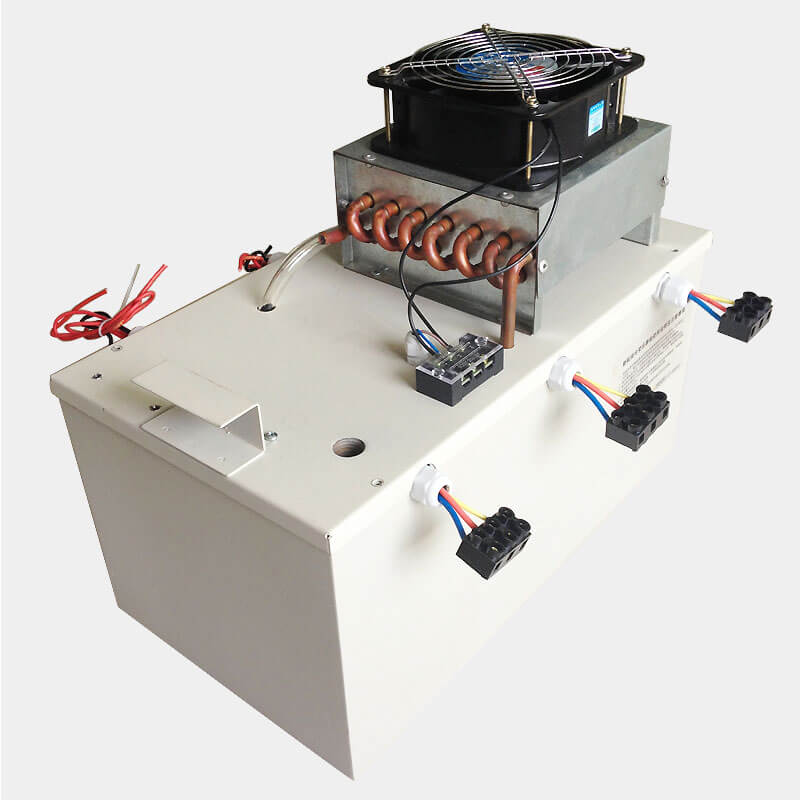

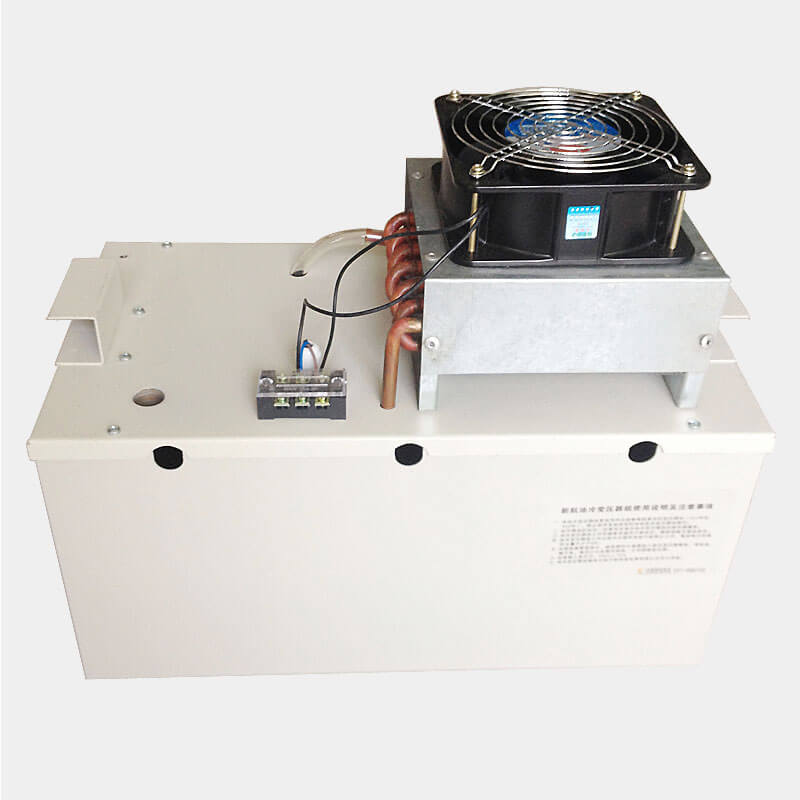

3x1000W Oil Immersed power supply groups

Product name:3x1000W Oil Immersed Microwave Switch Power Supply
Working environment temperature:0 -45 ℃
Weight:15Kgs
Rated input voltage:220-240V/50-60HZ
Power factor:>0.9
Maximum output power:3x1000w
Output direct voltage:3x4200V
Filament voltage:3.15V
Heat-dispassion method:Oil and Air cooling
Size:470x210x350mm(LxWxH)

We're here to help: Easy ways to get the answers you need.

Description of 3x1000W Oil Immersed power supply groups:

Henan Xinhang Microwave Technology Co., Ltd produced 3x1000W oil immersed microwave switch power supply could match with 3 pcs of magnetrons. There are two kinds oil immersed microwave pcb boards: variable frequency and fixed frequency. Power of variable frequency switch power supply could be adjustable continuously with potentiometer. One potentiometer could control 8 sets of integrated circuit plates.
Before usage, pls filling 10kgs 25# or 40# oil into the oil tank.

Application of 3x1000W Oil Immersed power supply groups:

3x1000W Oil Immersed Microwave Switch Power Supply is applied to Microwave drying and sterilizing equipment and microwave hot food vending machine.
