Industrial Microwave Combined Power Supply 3x1000W

Input voltage:220V
Output voltage:4400V
Output current:18A
Output power:3x1000W
Frequency:2450MHZ
Power phase:Single
Weight:34Kgs
Size:510x260x310mm(LxWxH)
Application:Microwave sterilizing and drying equipment
Product name:Industrial Microwave Combined Power Supply 3x1000W

We're here to help: Easy ways to get the answers you need.

Description of Industrial Microwave Combined Power Supply 3x1000W:

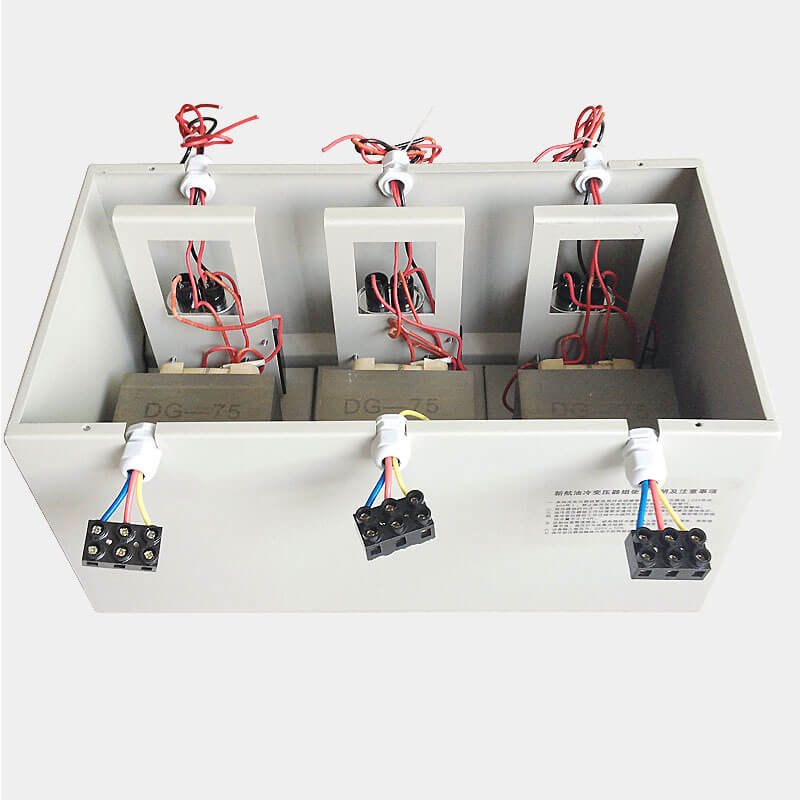

The Industrial Microwave Combined Power Supply 3x1000W contains 3 sets of all copper winding transformers, 3 pcs of famous brand high voltage capacitors and 3 pcs of famous brand diodes, and one circulating oil pump, one heat sink, one air cooling fan and other components.

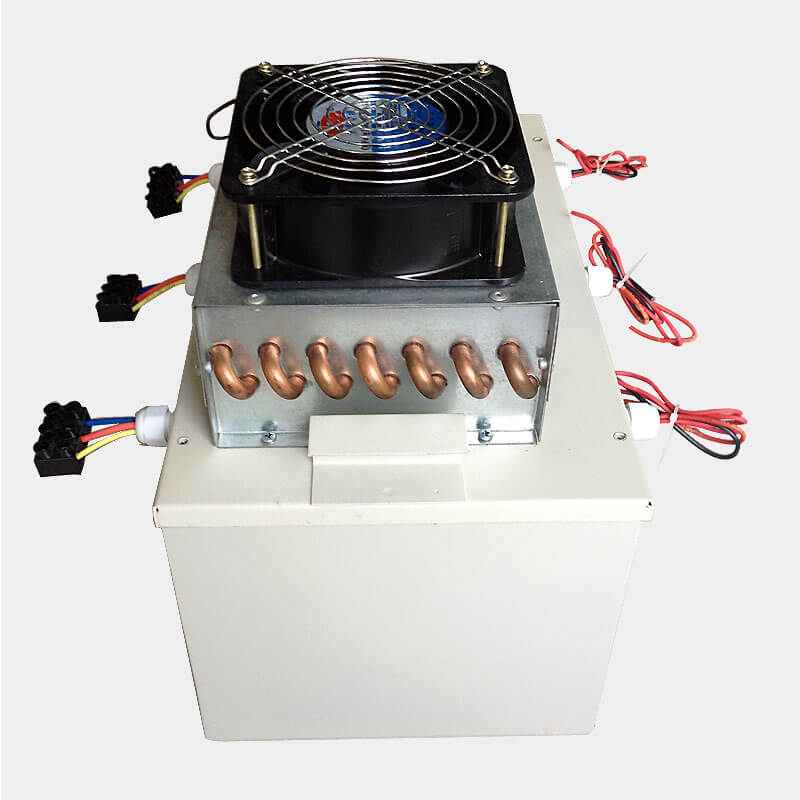

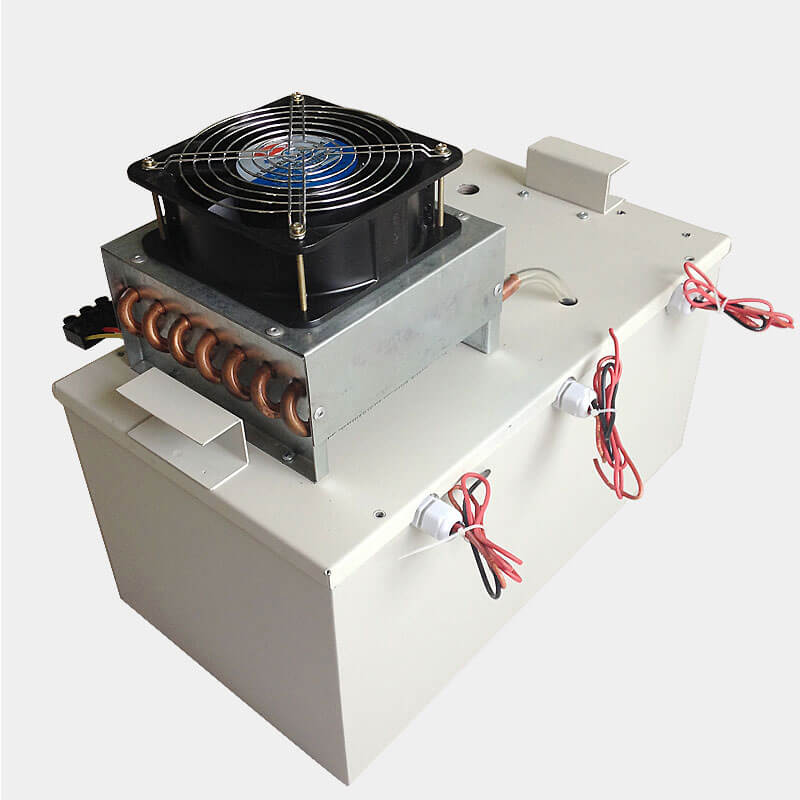

Filling about 10kgs of oil into the tank of this power supply. It has goods dispassion function to put the transformers into oil. The heat sink is installed on the top of the panel, and there is oxygen free copper tube in it. The inlet and outlet ports are connected to the circulating oil pump and the bottom of the oil tank separately. Heat could be taken out by the circulating oil pump and the heat sink.

Features of Industrial Microwave Combined Power Supply 3x1000W:

Industrial Microwave Combined Power Supply 3x1000W
1. The components are installed on the panel of the power supply, which save a lot of space, and make it easy to maintenance in future.

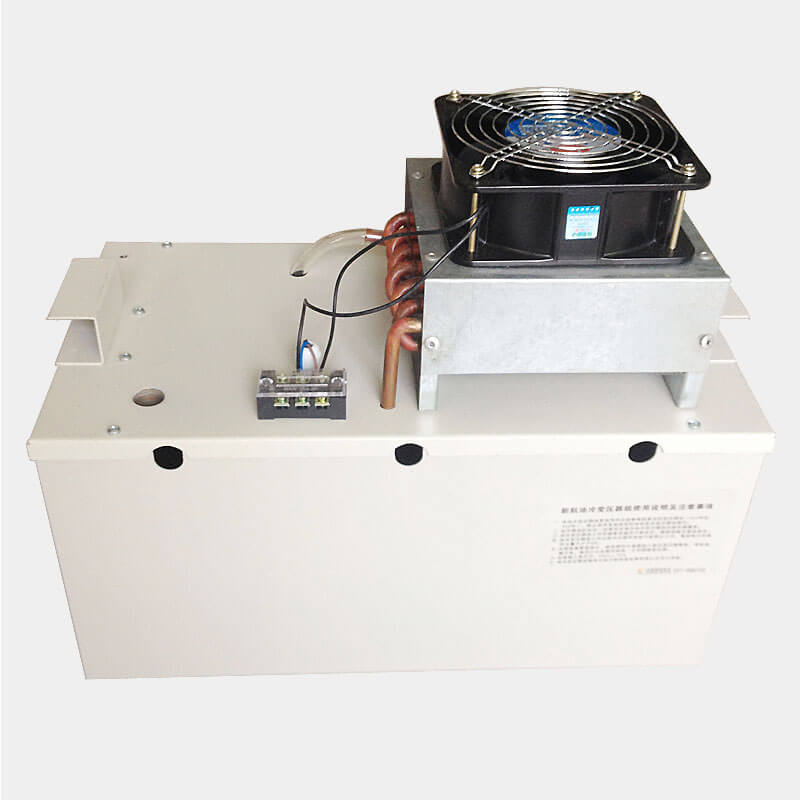

2. There is a oil filling hole on the panel, and it’s convenient to filling oil and check the oil level in the tank.
3. Adopt oxygen free copper tube and aluminum heat sink to dispassion.
4. Heat sink and circulating oil pump could take heat away in time.

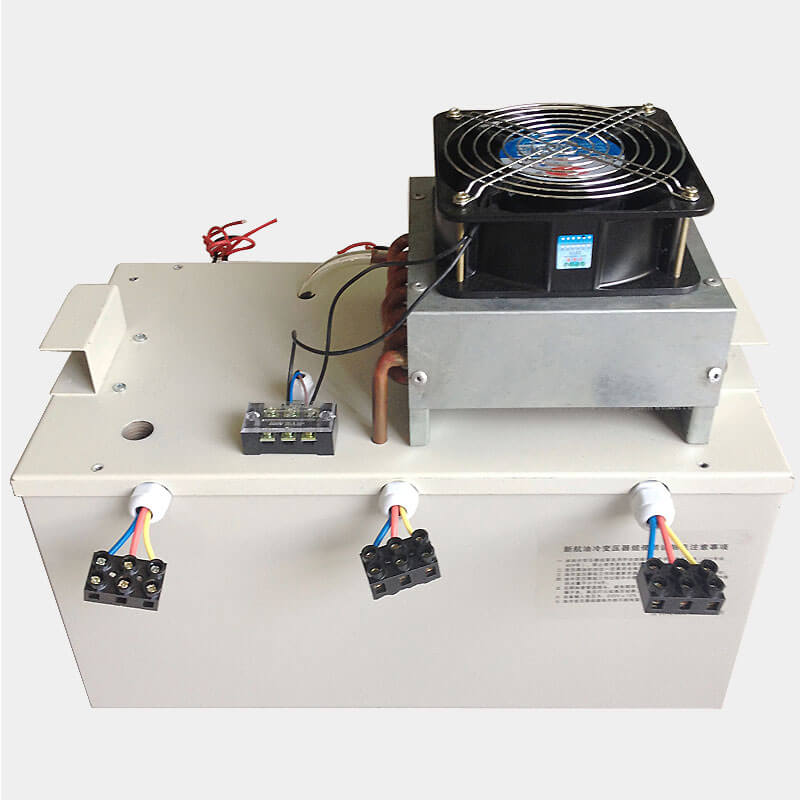

5. It’s convenient to use. Only need to make a hole on the equipment and put the power supply in it. The terminals are connected to 220V power supply, and the outlet wires are connected to 3 pcs of magnetrons.
6. Compared to traditional install transformers, diodes, and capacitors on equipment separately, this combined power supply could save a lot of labor cost.
